Deep groove ball bearings 62..-C-2HRS, modified internal construction (Generation C), main dimensions to DIN 625-1, lip seals on both sides: Specifications, Also known as, 0621658600000, 6205-2RS, 6205-2RS1, 6205-2RSH, 6205-2RSR, Category, Deep Groove Ball Bearings Single Row, Weight and Dimensions, Inner (d) MM, 25,00, Outer (D) MM, 52,00, Width (B) MM, 15,00, Inner (d) Inch, 0.9843, Outer (D) Inch, 2.0472, Width (B) Inch, 0.5906, Weight (kg), 0.1303, Product Properties, Bore, C - Cylindrical Bore, Seal, 2RH - High Speed Low Friction Seal on Two Sides, Cage Type, S - Steel or Standard Cage, External Modification, No External Modification, Radial Internal Play, Cn Normal Internal Play, Precision, Standard Precision, Lubrication, Standard Lubrication, Heat Stabilization, No Heat Stabilization - Temperatures up to 120 °C, Special Treatment, No Special Treatment, Data from Schaeffler (medias), Width (b) mm, 15,00, Radial Static Load Rating C0r (N), 7800, Radial Dynamic Load Rating Cr (N), 15900, Basic static load rating, radial (C 0r), "7800.0000", Limiting speed (n G), "12200.0000", ECLASS number, 23-05-08-01, ECLASS2 number, 23-05-08-01, Medias description, Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1, Suffix description, C, Deep Groove Ball Bearings Of Generation C, Modified Internal Construction, 2HRS, Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal

• Specifications:
• Deep groove ball bearings 62..-C-2HRS
• Modified internal construction (Generation C)
• Main dimensions to DIN 625-1
• Lip seals on both sides
• Also known as:
• 0621658600000
• 6205-2RS
• 6205-2RS1
• 6205-2RSH
• 6205-2RSR
• Category:
• Deep Groove Ball Bearings Single Row
• Weight and Dimensions:
• Inner (d) MM: 25.00
• Outer (D) MM: 52.00
• Width (B) MM: 15.00
• Inner (d) Inch: 0.9843
• Outer (D) Inch: 2.0472
• Width (B) Inch: 0.5906
• Weight (kg): 0.1303
• Product Properties:
• Bore: C - Cylindrical Bore
• Seal: 2RH - High Speed Low Friction Seal on Two Sides
• Cage Type: S - Steel or Standard Cage
• External Modification: No External Modification
• Radial Internal Play: Cn Normal Internal Play
• Precision: Standard Precision
• Lubrication: Standard Lubrication
• Heat Stabilization: No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment: No Special Treatment
• Data from Schaeffler (medias):
• Width (b) mm: 15.00
• Radial Static Load Rating C0r (N): 7800
• Radial Dynamic Load Rating Cr (N): 15900
• Basic static load rating, radial (C 0r): '7800.0000'
• Limiting speed (n G): '12200.0000'
• ECLASS number: 23-05-08-01
• ECLASS2 number: 23-05-08-01
• Medias description: Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1
• Suffix description: C, Deep Groove Ball Bearings Of Generation C, Modified Internal Construction, 2HRS, Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal

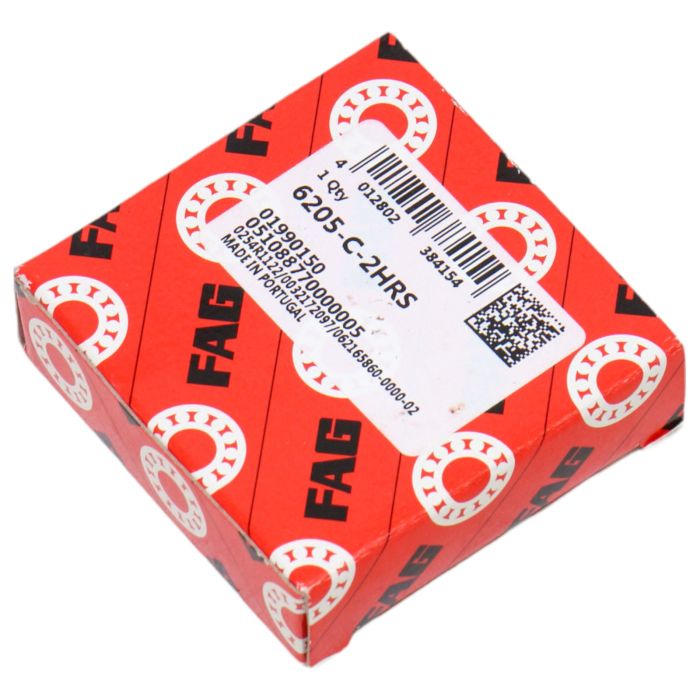

6205-C-2HRS FAG is a high-quality deep groove ball bearing suitable for various industrial applications. This item can be purchased at PLC2Day.
