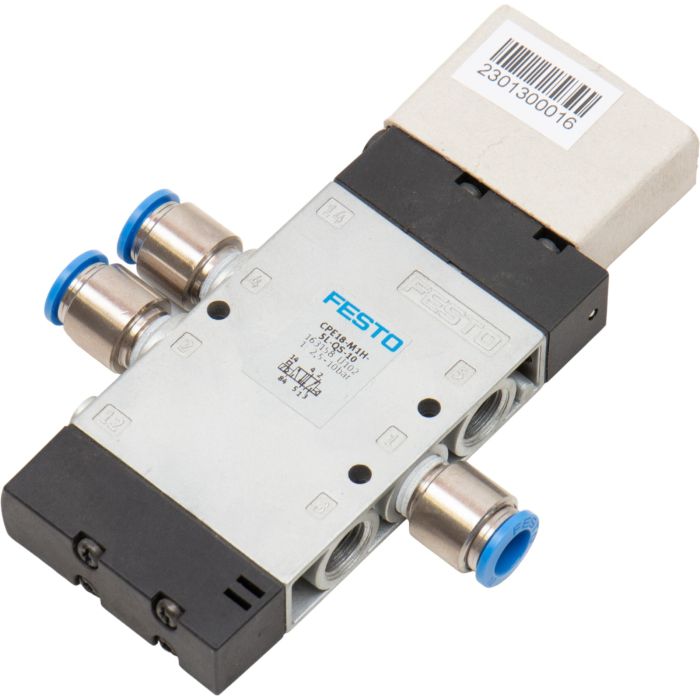

5LQS10, Solenoid valve: GTIN: 4052568133207, Serie: U102, Features: Valve function 5/2-way, monostable, Type of actuation Electric, Construction width 18 mm, Standard nominal flow rate 1000 l/min, pneumatic working port QS-10, Operating voltage 24V DC, Operating pressure 0.25 MPa ... 1 MPa, Operating pressure 2.5 bar ... 10 bar, Design Piston gate valve, Type of reset Pneumatic spring, Approval c UL us - Recognized (OL), Maritime classification See certificate, Degree of protection IP65, With plug socket, To IEC 60529, Nominal size 8 mm, Exhaust-air function With flow control option, Sealing principle Soft, Mounting position optional, Manual override Detenting via accessory, Non-detenting, Type of piloting Pilot actuated, Pilot air supply Internal, Flow direction Non-reversible, Symbol 00991023, Valve position code Inscription label holder, lap Positive overlap, Switching time off 20 ms, Switching time on 26 ms, Duty cycle 100%, Max. positive test pulse with 0 signal 3300 µs, Max. negative test pulse with 1 signal 3100 µs, Characteristic coil data 24 V DC: 1.5 W, Permissible voltage fluctuations -15%/+10%, Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required).
