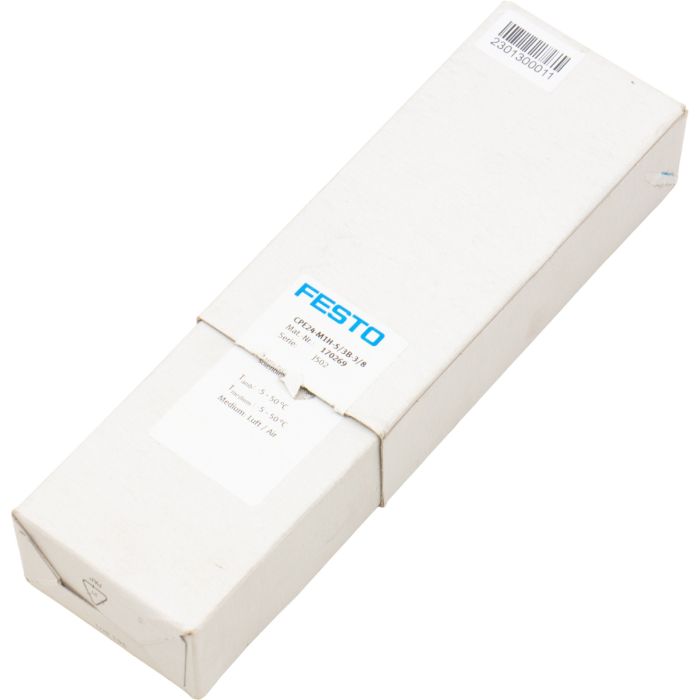

CPE24M1H5/3B3/8, Solenoid Valve, GTIN: 4052568138059, Valve function 5/3-way, pressurised, Type of actuation Electric, Construction width 24 mm, Standard nominal flow rate 2600 l/min, pneumatic working port G3/8, Operating voltage 24V DC, Operating pressure 0.25 MPa ... 1 MPa, Operating pressure 2.5 bar ... 10 bar, Design Piston gate valve, Type of reset Mechanical spring, Approval c UL us - Recognized (OL), Maritime classification See certificate, Degree of protection IP65, With plug socket, To IEC 60529, Nominal size 11 mm, Exhaust-air function With flow control option, Sealing principle Soft, Mounting position optional, Manual override Detenting via accessory, Non-detenting, Type of piloting Pilot actuated, Pilot air supply Internal, Flow direction Non-reversible, Symbol 00991034, Valve position code Inscription label holder, lap Positive overlap, Switching time off 55 ms, Switching time on 25 ms, Duty cycle 100%, Max. positive test pulse with 0 signal 3300 µs, Max. negative test pulse with 1 signal 3100 µs, Characteristic coil data 24 V DC: 1.5 W,, Permissible voltage fluctuations -15%/+10%, Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will, always be required).
