Connection Electrical: Technical data, CP strand extension, yes 16 inputs 8 outputs (or 16 valves), Fieldbus interface, Optionally: Socket and plug, M12x1, 5-pin, B-coded Sub-D, 9-pin, socket, Device-specific diagnostics, Via device related diagnostics (DPV0) Missing module on CP string expander Short circuit/overload outputs Under voltage outputs Under voltage sensor supply Under voltage valves, Communication types, Cyclic communication, Configuration support, GSD file and bitmaps, Maximum number of valve coils with strand extension, 32, Maximum number of valve coils, 16, Polarity protection, For all electrical connections, Baud rate, 9.6 kBaud ... 12 MBaud Automatic detection, Operating voltage range DC, 20.4V ... 26.4V, Maximum number of outputs, (16 valve coils are omitted) 8, Maximum number of inputs, 16, Nominal operating voltage DC, 24 V, Power failure bridging, 10 ms, Residual ripple, 4 Vss, Current consumption at rated operating voltage load, Depending on valve type, Current consumption at rated operating voltage, Electronics: <= 100 mA Sensor supply: sensor dependent, LABS compliance, VDMA24364-B1/B2-L, Bearing temperature, -20 °C ... 70 °C, Protection class, IP65, Ambient temperature, -5 °C ... 50 °C, Approval, c UL us - Recognized (OL), Product weight, 240g, Address range, 1 ... 125 Setting by switch module, Fieldbus certification, PNO, Galvanic isolation fieldbus interface, Optocoupler, LED indication bus-specific, BUS: communication and configuration error, LED indication product specific, 12/14: Switching state of valves POWER: Operating voltage for electronics and load supply, Product identification, Product family: 4: valves, Material cover, PA amplified, Material seals, CR NBR, Housing material, Die-cast aluminum, Material information, RoHS compliant, Note: 1 screw (on top) is missing.

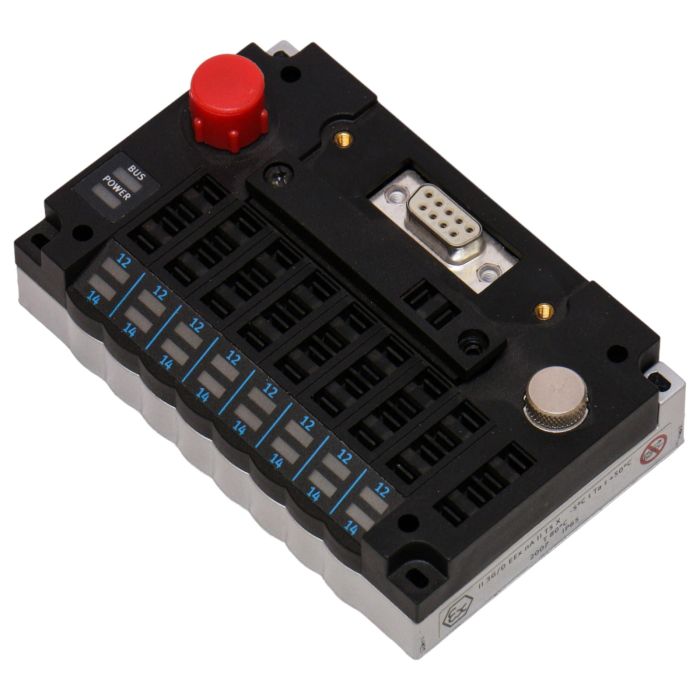

Item: CPV10-GE-DI01-8 165809 Festo

Festo's CPV10-GE-DI01-8 165809 is a high-quality industrial item suitable for various applications. It is widely used in industries such as manufacturing, automation, and process control. This item is designed to provide efficient and reliable performance, making it ideal for demanding industrial environments. You can purchase this Festo item at PLC2Day, a trusted supplier of industrial automation products.
