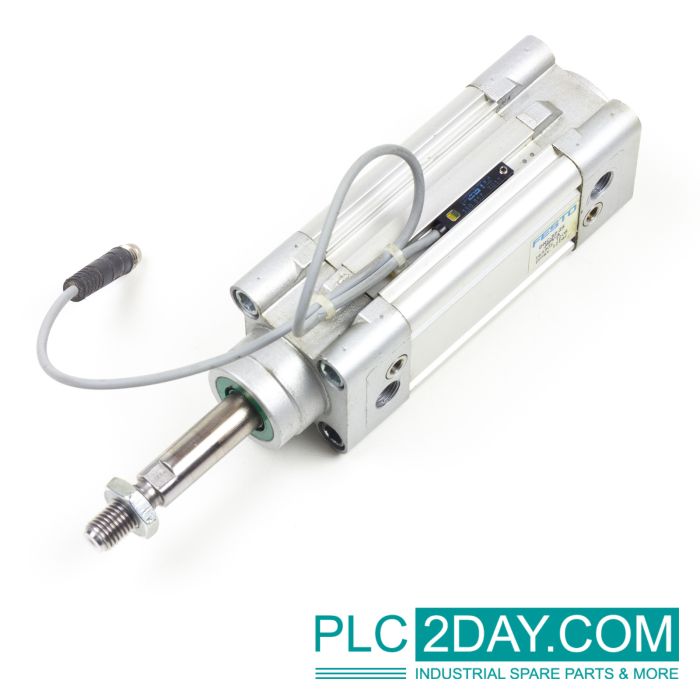

• DNC-32-25-PPV-A 163305 | DNC3225PPVA163305 • DNC-32-25-PPV-A (163305) Standard cyl: Properties: Stroke [mm]: 2, Piston diameter 32 mm, Piston rod thread: M10x1,25, installation positio: arbitrary, Piston rod en: Male threa, Construction set u: Pisto, piston, profile tube, Position detection: For proximity, switch, Variants: One-sided piston rod, Operating pressure [bar]: 0.6 to 12, Principle of operation: double acting, Operating medium Compressed air to ISO 8573-1:2010 [7:4:4, Information about operating and control medium, Oiled operation possible (required in further operations), Corrosion resistant class KBK: 2 - moderate corrosion stre, ambient temperature [°C]: -20 to 80, INCLUSIVE: Proximity Switch: SME-8-S-LED-24 (150857) Prox. sensor: properties: Design For T-slot, Permission RCM mark, CE certificate (see, declaration of conformity): to EU EMC directive, Material information Copper and PTFE-free, Measurement principle Reed magnetic, ambient temperature [°C: -40 to 70, Control out: Bipolar contact, Switching element function NO contact, Reproducibility of the switching value, ± 0,1 mm, Switch on time [ms], 0,5, Switch off time [ms]: 0,03, Max. output current [mA]: 50, Max. switching capacity AC [Voltampere: 10,0, Max. switching capacity DC [W] 10, Short circuit resistance: no, Overload resistant: Not available. Operating voltage range AC [V] 12 to 30, Operating voltage range DC [V]: 12 to 30, Reverse polarity protection: n: electrical connection: M8x1, 3 pin, Cable with p, Connection outlet direction: along, Cable length [MTR]: 0,3, Cable sleeve material TPE-U(PUR), Fastening type clamped in t-slot, Push-in lengthwise into the slot, Torque [Nm] 0,2, Product weight [g] 8,0, Housing material: PC: PET, High-alloyed stainless steels, Epoxy resin: Switching status indicator: LED yellow, Ambient temperature for moving cable placements [°C], -5 to 70.
