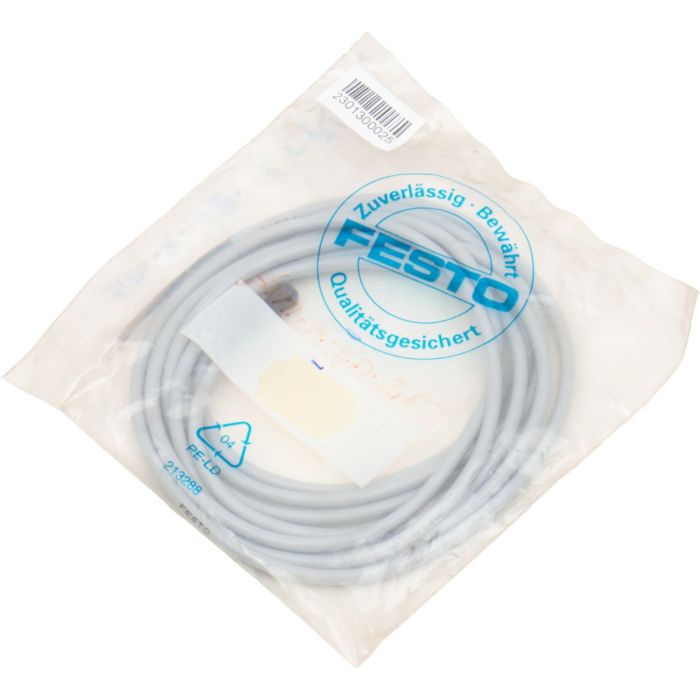

SIMKGD2,5PU, GTIN: 4052568036874, Feature Value: Conforms to standard Wire colors and connection numbers as per EN 60947-5-2, EN 61076-2-104, EN 61984, Cable designation Without label holder, Contact durability 100, Electrical connection 1, function Field device end, Electrical connection 1, design Round, Electrical connection 1, connection type Socket, Electrical connection 1, cable outlet Straight, Electrical connection 1, connection technology M8 snap-locking A-coded as per EN 61076-2-104, Electrical connection 1, number of pins/wires 3, Electrical connection 1, occupied pins/wires 3, Electrical connection 1, type of mounting Snap-locking, Electrical connection for input 1, connection pattern 00991871, Electrical connection 2, function Control side, Electrical connection 2, connection type Cable, Electrical connection 2, connection technology Open end, Electrical connection 2, number of pins/wires 3, Electrical connection 2, occupied pins/wires 3, DC operating voltage range 0 V ... 60 V, Operating voltage range AC 0 V ... 60 V, Current rating at 40°C 3 A, Surge resistance 1.5 kV, Cable length 2.5 m, Cable characteristic Standard, Connector cable test conditions Flexural strength: as per Festo standard, Test conditions on request, Energy chain > 5 million cycles, bending radius 28 mm, Bending radius, fixed cable installation ≥23 mm, Bending radius, flexible cable installation ≥46 mm, Cable diameter 4.5 mm, Cable diameter tolerance ± 0.1 mm, Cable design 3 x 0.25 mm², Nominal conductor cross section 0.25 mm², Wire ends Cable end sleeve, 1/30/23 - Subject to change - Festo SE & Co. KG 1/2, Degree of protection IP65, IP67, Note on degree of protection In mounted state, Ambient temperature -25 °C ... 70 °C, Ambient temperature with flexible cable installation -5 °C ... 70 °C, Storage temperature -25 °C ... 70 °C, CE marking (see declaration of conformity) As per EU low voltage directive, As per EU RoHS directive, UKCA marking (see declaration of conformity) To UK instructions for electrical equipment, To UK RoHS instructions, LABS (PWIS) conformity VDMA24364-B2-L, Note on materials RoHS-compliant, Halogen-free, Contamination level 3, Corrosion resistance class (CRC) 4 - Particularly high corrosion stress, Material of cable sheath TPE-U(PUR), Color cable sheath Gray, Housing material TPE-U(PUR), Housing colour Black, Seals material NBR, Material of pin contacts Brass, g.
