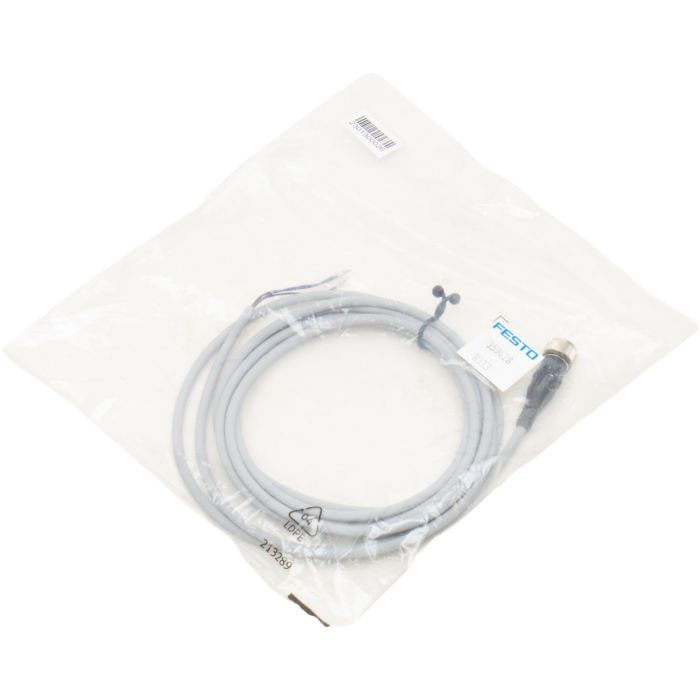

SIMM123GD2,5PU, Connecting cable, GTIN: 4052568071554, Conforms to standard: EN 61076-2-101, EN 61984, Electrical connection: 5-pin/3-wire, Straight socket/open end, M12x1 / ,- Plug coding: A, Symbol; 00991867, DC operating voltage range; 0 V ... 250 V, Operating voltage range AC; 0 V ... 250 V, Current rating at 40°C; 4 A, Surge ,resistance; 2.5 kV, Cable length; 2.5 m, Cable characteristic; Standard, Connector cable test conditions; Flexural strength: as per Festo standard, Test conditions on request; Energy chain > 5 million cycles, bending radius 75 mm, Cable diameter; 3.8 mm, Cable design; 3 x 0.25 mm², Nominal conductor cross section; 0.25 mm², Wire insulation color code; Blue, Brown, Black, Degree of protection; IP65, IP68, Ambient temperature; -25 °C ... 80 °C, Ambient temperature with flexible cable installation; -5 °C ... 80 °C, CE marking (see declaration of conformity); As per EU low voltage directive, As per EU RoHS directive, UKCA marking (see declaration of conformity); To UK instructions for electrical equipment, To UK RoHS instructions, LABS (PWIS) conformity; VDMA24364-B2-L, Note on materials; RoHS-compliant, Halogen-free, Free of phosphoric acid ester, Contamination level; 3, Corrosion resistance class (CRC); 2 - Moderate corrosion stress, Material of cable sheath; TPE-U(PU), Color cable sheath; Gray, Housing material; TPE-U(PU), Housing colour; Black, Material of union nut; Brass, nickel-plated, Seals material; NBR, Material of pin contacts; Brass, gold-plated, Insulating sheath material; PP.
