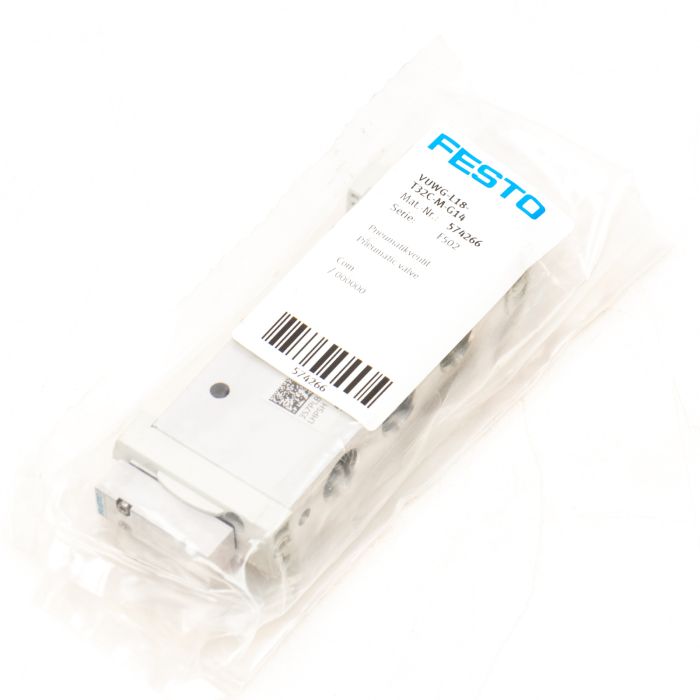

FESTO VUWG-L18-T32C-M-G14 (574266), Pneumatic valve: Serie: F502, VUWGL18T32CMG14
Article number: 2212150020
In stock
Backorder allowed
Out of stock
Pneumatic valve: Serie: F502: Valve function 2x3/2-way, monostable, closed, Type of actuation: Pneumatic, Valve size: 18 mm, Standard nominal flow rate: 1000 l/min, pneumatic working port : G1/4, Operating pressure: -0.9 bar ... 10 bar, Design: Piston gate valve. Type of reset: Mechanical spring, Grid dimension: 19 mm, Exhaust-air function: With flow control option, Sealing principle: Soft, Mounting position: optional, Manual override: None, Type of piloting: Direct, Flow direction: Reversible, Symbol: 00992942, lap: Positive overlap, Pilot pressure: 3 bar ... 10 bar, Suitability for vacuum: yes, Switching time off 25 ms, Switching time on: 17 ms, Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4].....
SKU
2212150020
€110.72
Excl. Tax:
€91.50
€106.42
Excl. Tax:
€87.95
Excl. Tax:
Excl. Tax:
Description / FESTO VUWG-L18-T32C-M-G14 (574266), Pneumatic valve: Serie: F502, VUWGL18T32CMG14
Pneumatic valve: Serie: F502: Valve function 2x3/2-way, monostable, closed, Type of actuation: Pneumatic, Valve size: 18 mm, Standard nominal flow rate: 1000 l/min, pneumatic working port : G1/4, Operating pressure: -0.9 bar ... 10 bar, Design: Piston gate valve. Type of reset: Mechanical spring, Grid dimension: 19 mm, Exhaust-air function: With flow control option, Sealing principle: Soft, Mounting position: optional, Manual override: None, Type of piloting: Direct, Flow direction: Reversible, Symbol: 00992942, lap: Positive overlap, Pilot pressure: 3 bar ... 10 bar, Suitability for vacuum: yes, Switching time off 25 ms, Switching time on: 17 ms, Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4].....
More Information
| Item Number | VUWG-L18-T32C-M-G14 (574266) |
|---|---|
| Brands | Festo |
| HS Code | Upon Request |
| EAN | 4052568222680 |
| Manufacturer | Festo |
| Product Condition | New |
| Packing Condition | Original Packing |
