Diffuse reflection sensor: Very long range, Intuitive setting of sensitivity and duration of switching delay, Programmable light-on/dark-on mode, With function check output to signal soiling or maladjustment, LED display to check operation, switching status and function, Product characteristics, Type of light, infrared light, Housing, rectangular, Application, Function principle, Diffuse reflection sensor, Electrical data, Frequency AC [Hz], 47...63, Operating voltage [V], 20...250 AC/DC, Max. power consumption [VA], 2, Protection class, II, Reverse polarity protection, no, Type of light, infrared light, Wave length [nm], 880, Outputs, Electrical design, relay, Output function, light-on/dark-on mode; (programmable), Contact rating, 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W, Switching frequency AC [Hz], 10, Switching frequency DC [Hz], 10, Short-circuit proof, no, Overload protection, no, Detection zone, Range [mm], 5...1500; (white paper 200 x 200 mm), Range adjustable, yes, Max. light spot diameter [mm], 370, Light spot dimensions refer to, at maximum range, Operating conditions, Ambient temperature [°C], -25...60, Protection, IP 65, Tests / approvals, EMC, EN 60947-5-2, MTTF [years], 288, Mechanical data, Weight [g], 304.5, Housing, rectangular, Dimensions [mm], 90 x 30 x 70, Materials, PPO modified, Lens material, PMMA, Lens alignment, side lens, Displays / operating elements, Display, switching status, 1 x LED, yellow, operation, 1 x LED, green, function, 1 x LED, red, Electrical connection, Required protection, miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting, Accessories

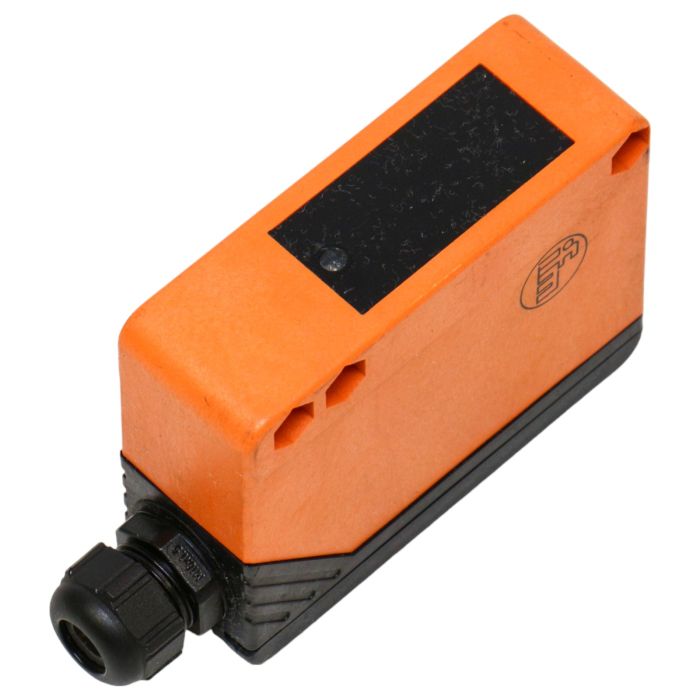

• Diffuse reflection sensor: Very long range
• Intuitive setting of sensitivity and duration of switching delay
• Programmable light-on/dark-on mode
• With function check output to signal soiling or maladjustment
• LED display to check operation, switching status and function
• Product characteristics
• Type of light: infrared light
• Housing: rectangular
• Application: Function principle, Diffuse reflection sensor
• Electrical data
• Frequency AC [Hz]: 47...63
• Operating voltage [V]: 20...250 AC/DC
• Max. power consumption [VA]: 2
• Protection class: II
• Reverse polarity protection: no
• Outputs
• Electrical design: relay
• Output function: light-on/dark-on mode; (programmable)
• Contact rating: 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
• Operating conditions
• Ambient temperature [°C]: -25...60
• Protection: IP 65
• Mechanical data
• Weight [g]: 304.5
• Housing: rectangular
• Dimensions [mm]: 90 x 30 x 70
• Materials: PPO modified
• Displays / operating elements
• Display: switching status, 1 x LED, yellow, operation, 1 x LED, green, function, 1 x LED, red
• Electrical connection
• Required protection: miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting

IFM Electronics is a reliable and high-quality industrial automation product that can be purchased at PLC2Day. This item is commonly used in a variety of industrial applications such as manufacturing, automotive, and packaging industries.
