The Microsonic is a versatile industrial item manufactured by an esteemed brand. It is widely used in various industrial applications, such as automation, robotics, and process control. Harnessing cutting-edge technology, the Microsonic offers reliable and efficient performance, making it an ideal choice for industrial professionals.

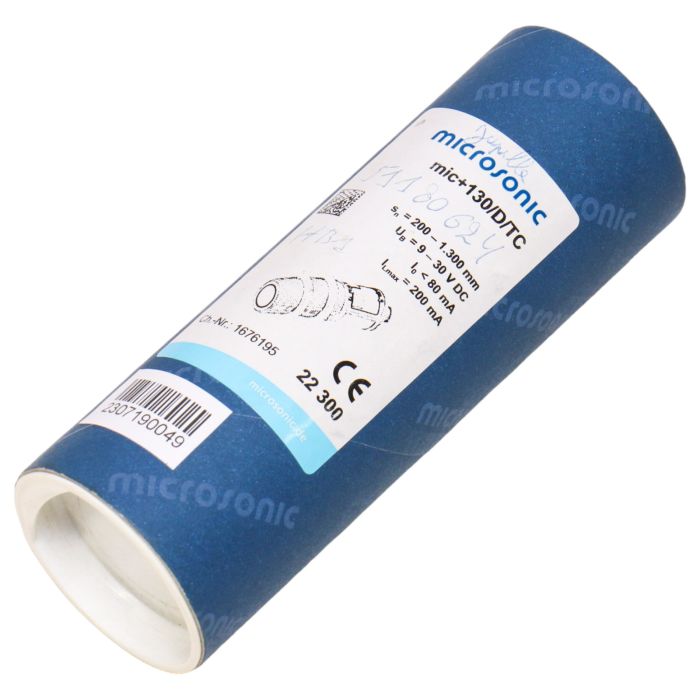

Description / MICROSONIC mic+130/D/TC 1676195

Ultrasonoc sensor: mic+130/D/TC/E, 1 x pnp 2,000 mm, measuring range200 - 2.000 mm, designcylindrical M30, operating modeproximity switch/reflective mode, reflective barrier, window mode, particularitiesstainless steel version, Display, UL Listed, ultrasonic-specific, means of measurementecho propagation time measurement, transducer frequency200 kHz, blind zone200 mm, operating range1,300 mm, maximum range2,000 mm, resolution0.18 mm, reproducibility± 0.15 %, accuracy± 1 % (temperature drift internally compensated), electrical data, operating voltage UB9 - 30 V d.c., reverse polarity protection, voltage ripple± 10 %, no-load current consumption≤ 80 mA, type of connection5-pin M12 initiator plug, outputs, output 1switching output, pnp: Imax = 200 mA (UB-2V), NOC/NCC adjustable, short-circuit-proof, switching hysteresis20 mm, switching frequency6 Hz, response time92 ms, delay prior to availability< 300 ms, inputs, input 1com input, synchronisation input, housing, materialstainless steel, plastic parts: PBT, TPU, ultrasonic transducerpolyurethane foam, epoxy resin with glass contents, class of protection to EN 60529IP 67, operating temperature-25°C to +70°C, storage temperature-40°C to +85°C, weight150 g, further versionscable connection (on request), technical features/characteristics, temperature compensationyes, controls2 push-buttons + LED display (TouchControl), scope for settingsTeach-in and numeric configuration via TouchControl, LCA-2 with LinkControl, Synchronisationyes, multiplexyes, indicators3-digit LED display, 2 x three-colour LED, particularitiesstainless steel version, Display, UL Listed
  • Ultrasonic sensor: mic+130/D/TC/E
  • 1 x pnp 2,000 mm
  • Measuring range: 200 - 2,000 mm
  • Design: cylindrical M30
  • Operating mode: proximity switch/reflective mode, reflective barrier, window mode
  • Particularities: stainless steel version, Display, UL Listed, ultrasonic-specific
  • Means of measurement: echo propagation time measurement
  • Transducer frequency: 200 kHz
  • Blind zone: 200 mm
  • Operating range: 1,300 mm
  • Maximum range: 2,000 mm
  • Resolution: 0.18 mm
  • Reproducibility: ± 0.15 %
  • Accuracy: ± 1 % (temperature drift internally compensated)
  • Electrical data:
    • Operating voltage: UB9 - 30 V d.c.
    • Reverse polarity protection
    • Voltage ripple: ± 10 %
    • No-load current consumption: ≤ 80 mA
    • Type of connection: 5-pin M12 initiator plug
  • Outputs:
    • Output 1: switching output, pnp: Imax = 200 mA (UB-2V), NOC/NCC adjustable, short-circuit-proof, switching hysteresis: 20 mm, switching frequency: 6 Hz, response time: 92 ms, delay prior to availability: < 300 ms
  • Inputs:
    • Input 1: com input, synchronisation input
  • Housing:
    • Material: stainless steel, plastic parts: PBT, TPU
    • Ultrasonic transducer: polyurethane foam, epoxy resin with glass contents
    • Class of protection to EN 60529: IP 67
    • Operating temperature: -25°C to +70°C
    • Storage temperature: -40°C to +85°C
    • Weight: 150 g
  • Further versions: cable connection (on request)
  • Technical features/characteristics:
    • Temperature compensation: yes
    • Controls: 2 push-buttons + LED display (TouchControl)
    • Scope for settings: Teach-in and numeric configuration via TouchControl, LCA-2 with LinkControl
    • Synchronisation: yes
    • Multiplex: yes
    • Indicators: 3-digit LED display, 2 x three-colour LED
    • Particularities: stainless steel version, Display, UL Listed

Mic+130/D/TC 1676195 Microsonic is a high-quality industrial sensor designed for various applications. It is a reliable and efficient sensor that can be used in industries such as manufacturing, automation, and robotics. This sensor is perfect for detecting and measuring distances, presence, and position of objects. You can purchase the Mic+130/D/TC 1676195 Microsonic sensor at PLC2Day, a trusted supplier of industrial automation products.

More Information

Item Number mic+130/D/TC 1676195
Brands Microsonic
HS Code Upon Request
EAN 4.25074E+12
HS Description Altrasonic sensor
Manufacturer Microsonic
Product Condition New
Packing Condition Original Packing
