Inductive sensor: Switching function Normally open (NO), Output type PNP, Rated operating distance 5 mm, Installation flush, Output polarity DC, Assured operating distance 0 ... 4.05 mm, Actual operating distance 4.5 ... 5.5 mm typ. 5 mm, Reduction factor rAl 0.2, Reduction factor rCu 0.15, Reduction factor r304 0.62, Reduction factor rBrass 0.32, Output type 3-wire, Nominal ratings, Operating voltage 10 ... 60 V, Switching frequency 0 ... 1500 Hz, Hysteresis 1 ... 10 typ. 6 %, Reverse polarity protection reverse polarity protected, Short-circuit protection pulsing, Voltage drop ≤ 3 V, Voltage drop at IL , Voltage drop IL = 100 mA, switching element on 1.5 ... 2.5 V typ. 1.9 V, Operating current 0 ... 200 mA, Lowest operating current 0 mA, Off-state current 0 ... 0.5 mA typ. 0.01 mA, Off-state current TU =40 °C, switching element off ≤ 100 µA, No-load supply current ≤ 9 mA, Time delay before availability ≤ 30 ms, Switching state indicator LED, yellow, Functional safety related parameters, MTTFd 750 a, Mission Time (TM) 20 a, Diagnostic Coverage (DC) 0 %, Compliance with standards and directives, Standard conformity , Standards EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012, Approvals and certificates, UL approval cULus Listed, General Purpose, CSA approval cCSAus Listed, General Purpose, CCC approval Certified by China Compulsory Certification (CCC), Ambient conditions, Ambient temperature -25 ... 70 °C (-13 ... 158 °F), Storage temperature -40 ... 85 °C (-40 ... 185 °F), Mechanical specifications, Connection type Connector plug M12 x 1 , 3-pin, Housing material Stainless steel 1.4305 / AISI 303, Sensing face PBT, Degree of protection IP67

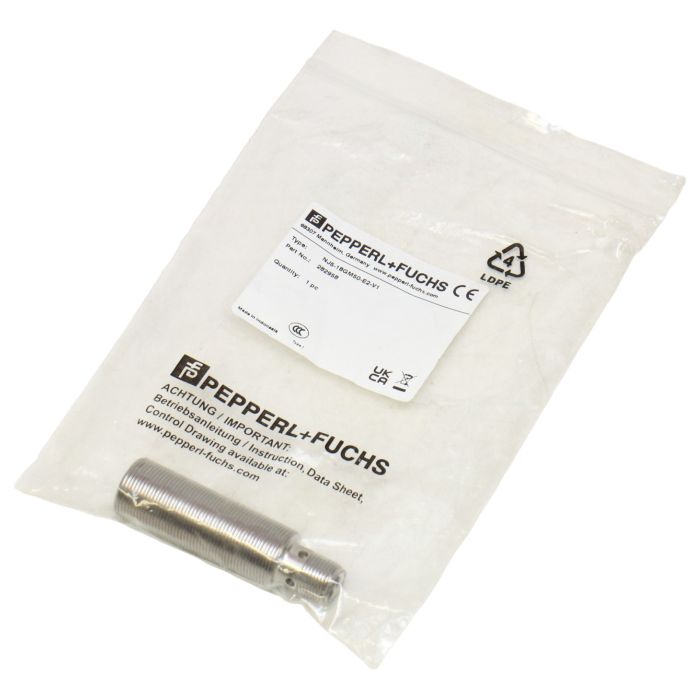

NJ5-18GM50-E2-V1 282958 Pepperl-Fuchs

Looking for a reliable industrial sensor? Look no further than the NJ5-18GM50-E2-V1 282958 Pepperl-Fuchs. This high-quality sensor is perfect for various industrial applications, offering accurate and precise measurements. It can be used in manufacturing, automation, and process control systems. You can easily purchase this exceptional sensor at PLC2Day, your trusted online supplier for all your industrial automation needs. Don't miss out on this top-notch product!
