• PNOZ sigma contact extension
• Outputs: 8 M, 1 V, UB = 24 V DC
• Width: 45 mm
• Plug-in spring-loaded terminals
• Contact block for contact extension in combination with safety-related control components

• General data
• Approval: CCC, CE, UKCA, cULus Listed, KOSHA, TÜV, EAC

• Technical data
• Electrical data:
• Supply voltage (V): 24 V
• Supply voltage type: U1 D.C
• Power consumption DC: 3 W
• Inputs:
• Number of entrances: 1
• Semiconductor outputs:
• Number of semiconductor outputs: 0
• Relay outputs:
• Usage Cat. AC/DC1 standard EN 60947-4-1
• Voltage AC1 safety cont.: 240 V
• Max. current AC1 safety cont.: 6 A
• Voltage DC1 safety cont.: 24 V
• Max. current DC1 safety cont.: 6 A
• Usage Cat. AC15/DC13 standard EN 60947-5-1
• Voltage AC15 safety cont.: 230 V
• Max current AC15 safety cont.: 5 A
• Voltage DC13 safety cont.: 24 V
• Safety Cont.: AC at UL 240 V AC GU (same polarity)
• Relay contact material: AgCuNi, incl. contactspecific. relay + 0.2 µm Au

• Environmental data
• Climate conditions according to EN 60068-2-78
• Ambient temperature: -10 - 55 °C
• Moisture load indication: 93% RH at 40 °C
• Is condensation allowed? Not allowed
• EMC according to standard: EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
• Vibrations acc. norm: EN 60068-2-6
• Air and crawlways to EN 60947-1
• Overvoltage category: III
• Pollution degree air creep: 2

• Mechanical data
• Installation position: Random
• Housing mat. Lowest part: PC
• Housing material front plate: PC
• Housing material top part: PC
• Connection terminal: Spring clamp
• Clamp type: Pluggable
• Dimensions height: 100mm
• Dimension width: 45mm
• Dimensions depth: 120mm
• Net weight: 335g
• Gross weight: 350g

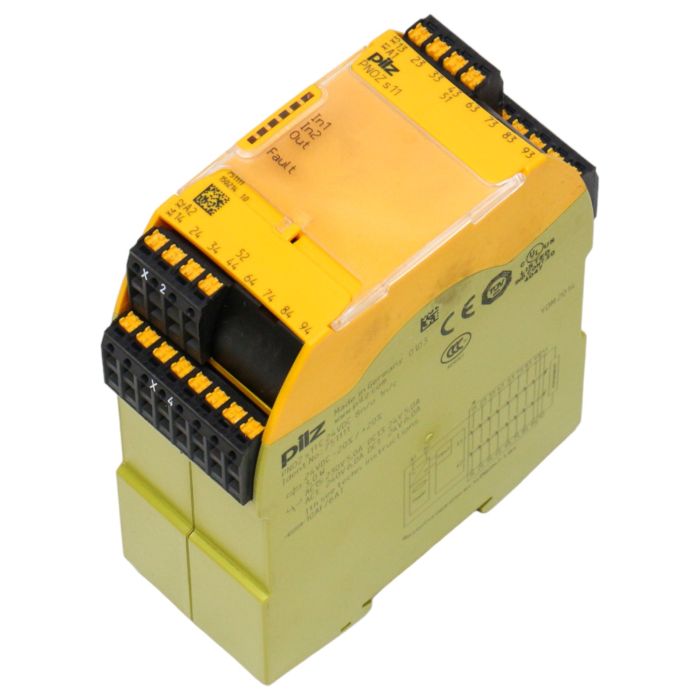

PNOZ s11C24VDC8n/o 1n/c 751111 Pilz is a safety relay suitable for industrial applications. This item can be purchased at PLC2Day.
