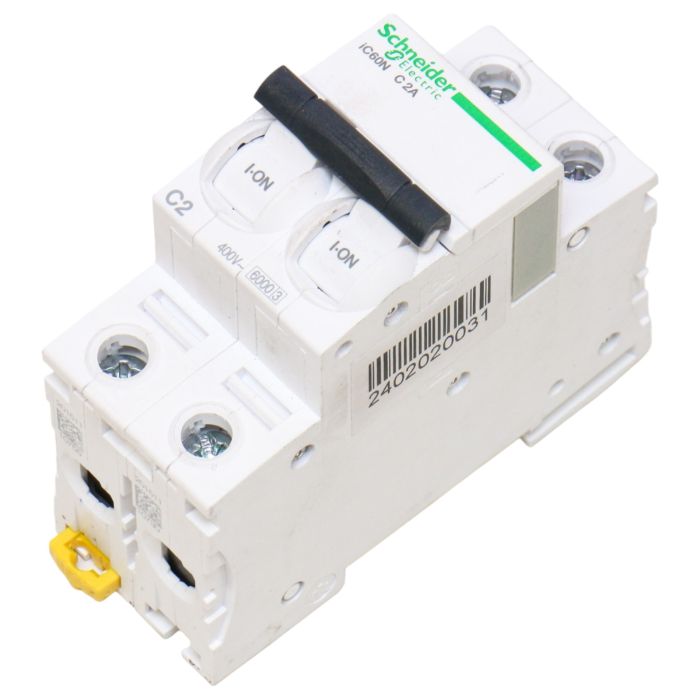

iC60N - miniature circuit breaker - 2P - 2A - C curve: Specifications, Main, Device application, Distribution, Range, Acti9, Product name, Acti9 iC60, Product or component type, Miniature circuit-breaker, Device short name, IC60N, Poles description, 2P, Number of prote: Specifications, Main, Device application, Distribution, Range, Acti9, Product name, Acti9 iC60, Product or component type, Miniature circuit-breaker, Device short name, IC60N, Poles description, 2P, Number of protected poles, 2, [In] rated current, 2 A, Network type, AC, DC, Trip unit technology, Thermal-magnetic, Curve code, C, Breaking capacity, 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1, 50 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 25 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2, Utilisation category, Category A conforming to EN 60947-2, Category A conforming to IEC 60947-2, Suitability for isolation, Yes conforming to EN 60898-1, Yes conforming to EN 60947-2, Yes conforming to IEC 60898-1, Yes conforming to IEC 60947-2, Standards, IEC 60898-1, EN 60898-1, IEC 60947-2, EN 60947-2, Quality labels, NF, Complementary, Network frequency, 50/60 Hz, Magnetic tripping limit, 8 x In +/- 20 %, [Ics] rated service breaking capacity, 50 kA 100 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz, 50 kA 100 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz, 50 kA 100 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz, 25 kA 100 % conforming to EN 60947-2 - 440 V AC 50/60 Hz, 50 kA 100 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz, 25 kA 100 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz, 50 kA 100 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz, 50 kA 100 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz, 6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz, 6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz, 10 kA 100 % conforming to IEC 60947-2 - 72...125 V DC, 10 kA 100 % conforming to EN 60947-2 - 72...125 V DC, Limitation class, 3 conforming to EN 60898-1, 3 conforming to IEC 60898-1, [Ui] rated insulation voltage, 500 V AC 50/60 Hz conforming to EN 60947-2, 500 V AC 50/60 Hz conforming to IEC 60947-2, [Uimp] rated impulse withstand voltage, 6 kV conforming to EN 60947-2, 6 kV conforming to IEC 60947-2, Contact position indicator, Yes, control type, Toggle, local signalling, Trip indicator, Mounting mode, Fixed, mounting support, DIN rail, Comb busbar and distribution block compatibility, Top or bottom: YES, 9 mm pitches, 4, height, 85 mm, Width, 36 mm, Depth, 78.5 mm, Net weight, 0.25 kg, Colour, White, Mechanical durability, 20000 cycles, Electrical durability, 10000 cycles, Connections - terminals, Single terminal (top or bottom) 1…25 mm² rigid, Single terminal (top or bottom) 1…16 mm² flexible, Wire stripping length, 14 mm for top or bottom connection, Tightening torque, 2 N.m top or bottom, earth-leakage protection, Separate block, Environment, IP degree of protection, IP20 conforming to IEC 60529, IP20 conforming to EN 60529, Pollution degree, 3 conforming to EN 60947-2, 3 conforming to IEC 60947-2, Overvoltage category, IV, Tropicalisation, 2 conforming to IEC 60068-1, Relative humidity, 95 % at 55 °C, Operating altitude, 0...2000 m, ambient air temperature for operation, -35…70 °C, Ambient air temperature for storage, -40…85 °C

• Specifications:
  • Main: Acti9
  • Device application: Distribution
  • Range: Acti9
• Product name: Acti9 iC60
• Product or component type: Miniature circuit-breaker
• Device short name: IC60N
• Poles description: 2P
• Number of protected poles: 2
• [In] rated current: 2 A
• Network type: AC, DC
• Trip unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1

A9F74202 Schneider Electric is a high-quality circuit breaker suitable for industrial applications. This reliable product can be purchased at PLC2Day for all your electrical distribution needs.
