3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC: Specifications, Main, Range of Product, Harmony Control Relays, Relay Type, Control relay, Product or Component Type, 3-phase control relay, Product Specific Application, For 3-phase supply, Relay name, RM17TG, Relay monitored parameters, Phase sequence, Phase failure detection (2 or more phase cut), time delay, Without, Switching capacity in VA, 1250 VA, Measurement range, 208...480 V voltage AC, Contacts type and composition, 1 C/O, [Uc] control circuit voltage, 208...480 V, Complementary, Maximum switching voltage, 250 V AC, 250 V DC, Minimum switching current, 10 mA 5 V DC, Supply voltage limits, 183…528 V AC, Control circuit voltage limits, - 12 % + 10 % Un, Power consumption in VA, 0…22 VA 400 V AC 50 Hz, Voltage detection threshold, < 100 V AC, control circuit frequency, 50...60 Hz +/- 10 %, Output contacts, 1 C/O, Nominal output current, 5 A, Measurement voltage limits, 183…528 V AC, delay at power up, 650 ms, Voltage range, 183...528 V, Response time, <= 130 ms (in the event of a fault), Marking, CE, Overvoltage category, III IEC 60664-1, Insulation resistance, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1, [Ui] rated insulation voltage, 400 V IEC 60664-1, Supply frequency, 50/60 Hz +/- 10 %, Operating position, Any position without derating, Connections - terminals, Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, Tightening torque, 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1, Housing material, Self-extinguishing plastic, Local signalling, For relay ON LED (yellow), Mounting support, 35 mm symmetrical DIN rail conforming to IEC 60715, Electrical durability, 100000 cycles, Mechanical durability, 30000000 cycles, Operating rate, <= 360 operations/hour full load, Utilisation category, AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, Safety reliability data, MTTFd = 924.6 years, B10d = 850000, Width, 0.69 in (17.5 mm), Net Weight, 0.29 lb(US) (0.13 kg), Environment, Electromagnetic compatibility, Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to IEC 61000-6-2, Standards, IEC 60255-1, Product Certifications, C-tick, GL, CSA, UL, GOST, Directives, 73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility, Ambient Air Temperature for Storage, -40…158 °F (-40…70 °C), Ambient air temperature for operation, -4…122 °F (-20…50 °C), Relative humidity, 95 % 131 °F (55 °C) IEC 60068-2-30, Vibration resistance, 0.35 mm 5…57.6 Hz)IEC 60068-2-6, 1 gn 57.6…150 Hz)IEC 60255-21-1, Shock resistance, 15 gn 11 ms IEC 60255-21-1, IP degree of protection, IP20 IEC 60529 terminals), IP30 IEC 60529 casing), Pollution degree, 3 IEC 60664-1, Dielectric test voltage, 2 kV AC 50 Hz, 1 min, Non-dissipating shock wave, 4 kV

• Specifications:
• Main Range of Product: Harmony Control Relays
• Relay Type: Control relay
• Product or Component Type: 3-phase control relay
• Product Specific Application: For 3-phase supply
• Relay name: RM17TG
• Relay monitored parameters: Phase sequence, Phase failure detection (2 or more phase cut), time delay
• Switching capacity in VA: 1250 VA
• Measurement range: 208...480 V voltage AC
• Contacts type and composition: 1 C/O
• [Uc] control circuit voltage: 208...480 V
• Complementary:
• Maximum switching voltage: 250 V AC, 250 V DC
• Minimum switching current: 10 mA 5 V DC
• Supply voltage limits: 183…528 V AC
• Control circuit voltage limits: - 12 % + 10 % Un
• Power consumption in VA: 0…22 VA 400 V AC 50 Hz
• Voltage detection threshold: < 100 V AC
• Control circuit frequency: 50...60 Hz +/- 10 %
• Output:
• Output contacts: 1 C/O
• Nominal output current: 5 A
• Measurement voltage limits: 183…528 V AC
• Delay at power up: 650 ms
• Voltage range: 183...528 V
• Response time: <= 130 ms (in the event of a fault)

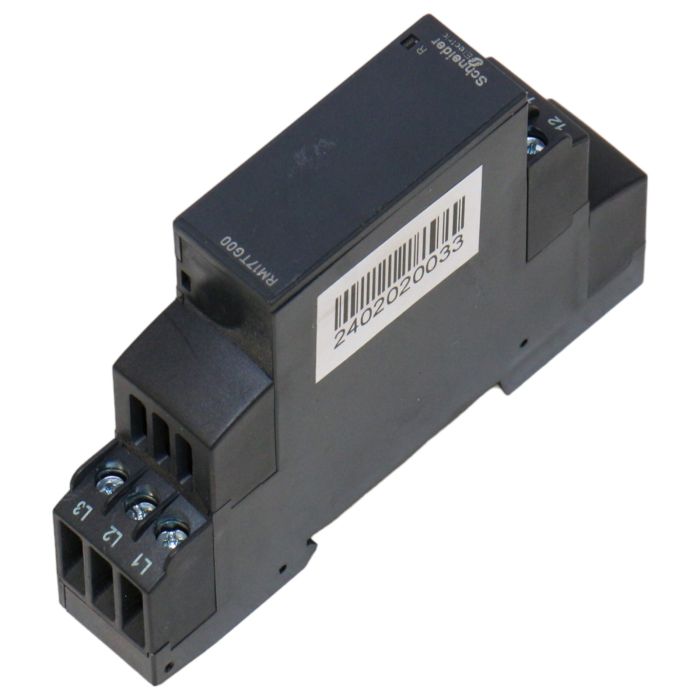

RMI17TG00 Schneider Electric is a versatile industrial automation product that can be used in a wide range of applications. From manufacturing plants to oil and gas refineries, this item is perfect for controlling and monitoring various processes. You can purchase this Schneider Electric item at PLC2Day for all your industrial automation needs.
