Incremental Encoder: Performance, Pulses per revolution 1,000 1), Measuring step 90° electric/pulses per revolution, Measuring step deviation at non binary, number of lines, ± 0.2°, Error limits ± 0.3°, 1) See maximum revolution range., Interfaces, Communication interface Incremental, Communication Interface detail HTL / Push pull, Number of signal channels 6-channel, Initialization time 40 ms, Output frequency ≤ 300 kHz, Load current ≤ 30 mA, Power consumption ≤ 0.5 W (without load), Electrical data, Connection type Male connector, M23, 12-pin, radial, Supply voltage 10 ... 32 V, Reference signal, number 1, Reference signal, position 90°, electric, logically gated with A and B, Reverse polarity protection ✔, Short-circuit protection of the outputs ✔, 1), MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) 2), 1) Short-circuit opposite to another channel, US or GND permissable for maximum 30 s., 2) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no., 8015532., Mechanical data, Mechanical design Solid shaft, face mount flange, 1) Allow for self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range., 2 ENCODERS | SICK Product data sheet | 2022-07-30 13:31:51, Subject to change without notice, DFS60E-S4EA01000 | DFS60, INCREMENTAL ENCODERS, Shaft diameter 10 mm, Shaft length 19 mm, Weight + 0.3 kg, Shaft material Stainless steel, Flange material Aluminum, Housing material Aluminum die cast, Start up torque 0.5 Ncm (+20 °C), Operating torque 0.3 Ncm (+20 °C), Permissible Load capacity of shaft 80 N (radial), 40 N (axial), Operating speed ≤ 9,000 min⁻¹ 1), Moment of inertia of the rotor 6.2 gcm², Bearing lifetime 3.6 x 10^10 revolutions, Angular acceleration ≤ 500,000 rad/s², 1) Allow for self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range., Ambient data, EMC According to EN 61000-6-2 and EN 61000-6-4, Enclosure rating IP67, Housing side, male connector (IEC 60529) 1), IP65, shaft side (IEC 60529), Permissible relative humidity 90 % (Condensation not permitted), Operating temperature range 0 °C ... +85 °C, Storage temperature range –40 °C ... +100 °C, without package, Resistance to shocks 50 g, 6 ms (EN 60068-2-27), Resistance to vibration 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)

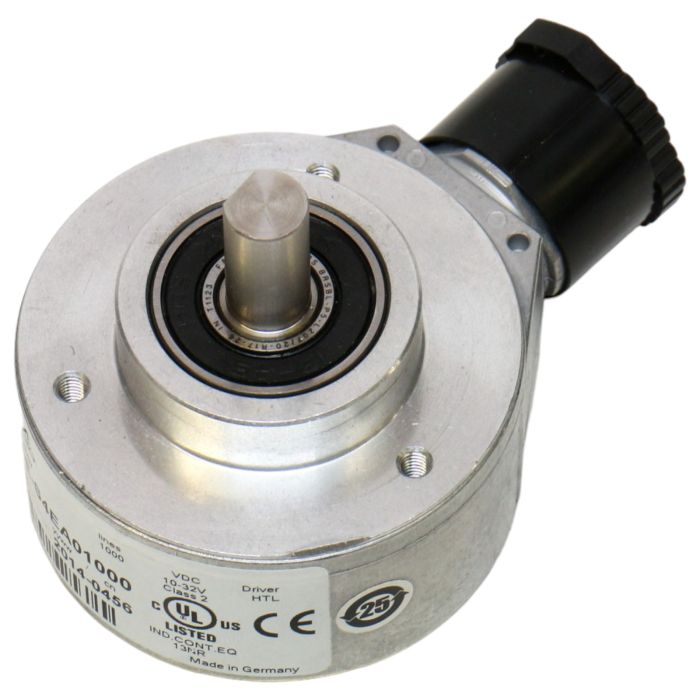

Sick DFS60E-S4EA01000 1037168 is an industrial sensor that can be bought at PLC2Day. This high-quality sensor is widely used in various industrial applications. It provides reliable and accurate measurements, making it suitable for use in manufacturing, automation, and robotics. With its robust design and advanced features, the Sick DFS60E-S4EA01000 1037168 sensor is a perfect choice for industries looking for precision and durability. Purchase this item at PLC2Day to enhance your industrial processes and improve efficiency.
