• Wireless Universal Transmitter
• Technical data:
• General technical data
• Applied standards: EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
• Enclosure: thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
• Tightening torque: M4 enclosure mounting screws - max 1.2 Nm, M2.5 cover screws - approx. 0.45 Nm
• Degree of protection: IP67 (IEC/EN 60529)
• Connection: plug-in connector M12 x 1, 4-pole
• Connectable devices: RF IS M8, RF IS M12, RF IS M18, RF IS M30, RF RC M10, external switches using the connecting cable 1215497
• Ambient temperature: –20 °C … +65 °C
• Operation cycles: max. 12000 telegrams with repetitions/h
• Switching frequency: max. 5 Hz
• Standby current: 15 µA
• Actuating time: min. 80 ms
• Note: status signal adjustable via jumper (10 s, 100 s, 1000 s, 10000 s)
• Wireless approvals: Europe - RED 2014/53/EU
• Weight: 120 g
• Wireless technology
• Protocol: sWave®
• Frequency: 868.3 MHz (Europe)
• Transmission power: < 25 mW
• Data rate: 66 kbps
• Channel bandwidth: 350 kHz
• Wireless range: max. 450 m outdoors, max. 40 m indoors
• Voltage supply
• Voltage source: lithium battery Tadiran SL-2770 (replaceable)
• System: Li/SOCl2
• Nominal voltage: 3.6 V
• Nominal capacity: 8.5 Ah
• Battery life – inductive sensor: depending on the switching frequency
• Battery life – magnetic sensor / external contact: depending on the switching frequency

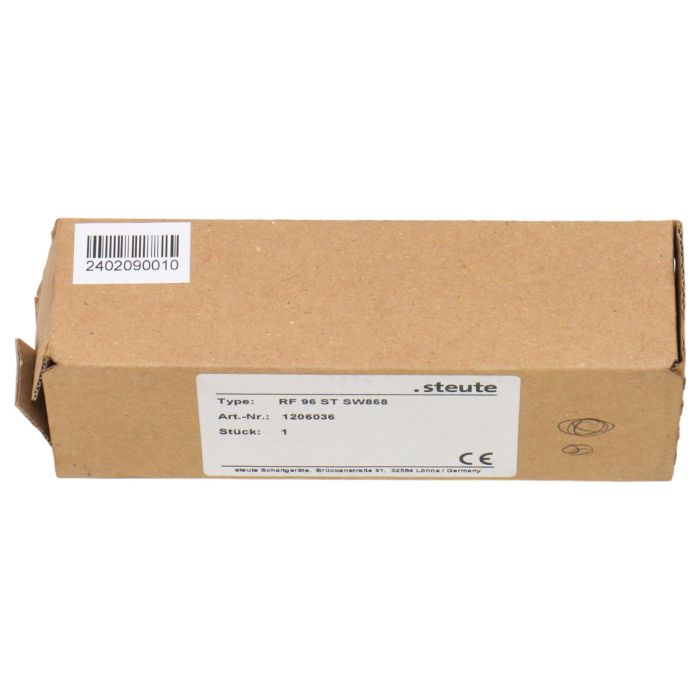

RF 96 ST SW868 1206036 Steute is a high-quality industrial sensing device used in various industrial applications. This item is perfect for monitoring and controlling operations in manufacturing, packaging, and automation processes. You can purchase this item at PLC2Day for your industrial needs.
