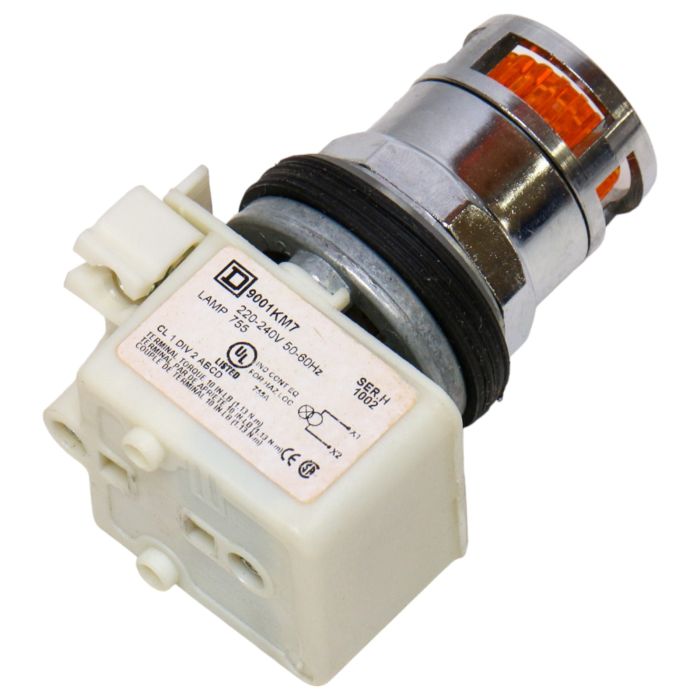

Illuminated push-button, Harmony 9001K, metal, metal guard flush, amber, 30mm, spring return, 220-240V, 1 C/O: Specifications, Main, Range of produc, Harmony 9001K, Product or component type, Illuminated push-button, Device short name, 9001K, Type of operator, Spring return, Operator profile, Amber flush, unmarked, Operator additional information, Metal guard, Complementary, bezel material, Metal, Mounting diameter, 1.18 in (30 mm), Shape of signaling unit head, Octagonal, Light source, Incandescent, Light source, Incandescent bulb, Bulb base, BA 9s, Light block supply, Via integral transformer 6 V, [Us] rated supply voltage, 220...240 V AC, Contacts type and composition, 1 C/O, Connections - terminals, Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1, Tightening torque, 7.08 lbf.in (0.8 N.m) IEC 60947-1, Shape of screw head, Cross slotted, Mechanical durability, 5000000 cycles, Operating position, Any position, [Ie] rated operational current, 3 A 240 V, AC-15, A600-Q600 NEMA, [Ui] rated insulation voltage, 250 V 3)IEC 60947-1, [Uimp] rated impulse withstand voltage, 2.5 kV IEC 60947-1, Contacts material, Silver alloy contacts, contact operation, Standard, Positive opening, Without, Short-circuit protection, 10 A cartridge fuse IEC 60947-5-1, [Ith] conventional free air thermal current, 10 A, [Icm] rated short-circuit making capacity, 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, Rated breaking capacity, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13, CAD overall width, 2.13 in (54 mm), CAD overall height, 1.65 in (42 mm), CAD overall depth, 4.17 in (106 mm), Terminals description ISO n°1, (13-14-11-12)OF, Net weight, 0.55 lb(US) (0.25 kg), device presentation, Complete product, Cap/operator or lens colour, Amber, [Us] rated supply voltage, 220...240 V, Light block supply, Via integral transformer, Operator profile, Flush, Type of operator, Spring return, Supply frequency, 50...60 Hz, Size, 30 mm, Environment, Standards, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, product certifications, UL 508, NEMA, Protective treatment, TC, Ambient air temperature for storage, -40…158 °F (-40…70 °C), ambient air temperature for operation, -13…158 °F (-25…70 °C), Vibration resistance, 7 gn 2…500 Hz)IEC 60068-2-6, Shock resistance, 50 gn IEC 60068-2-27, Overvoltage category, Class II IEC 61140, IP degree of protection, IP66 IEC 60529, NEMA degree of protection, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4.

• Product features and specifications:
• Range of product: Harmony 9001K
• Product or component type: Illuminated push-button
• Device short name: 9001K
• Type of operator: Spring return
• Operator profile: Amber flush, unmarked
• Operator additional information: Metal guard
• Bezel material: Metal
• Mounting diameter: 1.18 in (30 mm)
• Shape of signaling unit head: Octagonal
• Light source: Incandescent bulb, BA 9s
• Light block supply: Via integral transformer 6 V
• [Us] rated supply voltage: 220-240 V AC
• Contacts type and composition: 1 C/O
• Connections - terminals: Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
• Mechanical durability: 5000000 cycles
• [Ie] rated operational current: 3 A 240 V, AC-15, A600-Q600 NEMA
• [Ui] rated insulation voltage: 250 V 3)IEC 60947-1
• [Uimp] rated impulse withstand voltage: 2.5 kV IEC 60947-1
• Contacts material: Silver alloy contacts

Telemecanique 9001K3L7AH13 092937 is a reliable industrial item with various applications in automation and control systems. It can be used in manufacturing, energy, transportation, and other industrial sectors. Purchase this top-quality product at PLC2Day for all your industrial automation needs.
