TeSys - LRD -Thermal overload relay - 80-104A - Class 10A - Screw terminal: Description, TeSys - LRD -Thermal overload relay - 104A/1000V - Thermal setting range 80-104A - Class 10A - For protection of 3-phase motors: 45kW@400V. Differential device with phase error (loss). The UPS has a thermal adjustment knob, a manual-automatic reset selector that also functions as a reset button, a test button for automatic shutdown, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling. The settings are protected by a transparent cover that can be locked. Connection with screw terminals, which are connected directly to the lower contact terminals of 3-pole LC1D115-D150. Mounting on DIN rail or screw mounting, separated from the contactor, using a terminal block LA7D3064 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach)., read more, Specifications, Head, range, TeSys, product name, TeSys LRD, TeSys Deca, product or component type, Differential thermal overload relay, device short name, LRD, relay application, Motor protection, product compatibility, LC1D115, LC1D150, networktype, ACDC, _, class overload shutdown, Class 10A conforming to IEC 60947-4-1, thermal protection setting range, 80…104 A, Ui rated insulation voltage, Power circuit: 1000 V conforming to IEC 60947-4-1, Power circuit: 600 V conforming to CSA, Power circuit: 600 V conforming to UL, Complementary, network frequency, 0...400 Hz, mounting bracket, Plate, with specific accessories, Rail, with specific accessories, Under switch, switch-off limit, 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1, composition of auxiliary contact, 1 NO + 1 NC, Ith conventional thermal flow in free air, 5 A for signaling circuit, allowable current, 0.06 A at 440 V DC-13 for signaling circuit, 0.12 A at 600 V AC-15 for signaling circuit, Your assigned operating voltage, 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1, associated fuse rating, 4 A gG for signaling circuit, 4 A BS for signaling circuit, Uimp nom. shock wave voltage, 6 kV conforming to IEC 60947-1, sensitivity to absence phase, Cut-off current 130% of Ir on 2-phase, last at 0, control type, Red push button: stop, Blue push button: reset, temperature compensation, -20…60 °C, connections - terminals, Power circuit: screw clamp connections 1 cable(s) 4…35 mm² flexible with, Control circuit: screw clamp connections 2 cable(s) 1…2.5 mm² flexible without cable end, Control circuit: screw clamp connections 2 cable(s) 1…2.5 mm² flexible with, Control circuit: screw clamp connections 2 cable(s) 1…2.5 mm² solid without cable end, Power circuit: screw clamp connections 1 cable(s) 4…50 mm² flexible without cable end, Power circuit: screw clamp connections 1 cable(s) 4…50 mm² solid without cable end, tightening torque, Control circuit: 1.7 Nm - on screw clamp connections, Power circuit: 9 Nm - on screw clamp connections, depth, 132mm, net weight, 0.9kg, Environment, weather resistance, Conforming to IACS E10, IP degree of protection, IP20 conforming to IEC 60529, ambient air temperature for operation, -20…60 °C without underload conforming to IEC 60947-4-1, ambient air temperature for storage, -60…70 °C, flame retardancy, V1 conforming to UL 94, mechanical strength, Vibration: 6 gn conforming to IEC 60068-2-6, Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, dielectric strength, 2.2 kV at 50 Hz conforming to IEC 60947-1, standards, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/ T 14048.4, GB/T 14048.5, EN 50495, product certifications, IEC, UL, CSA, CCC, EAC, ATEX INERIS

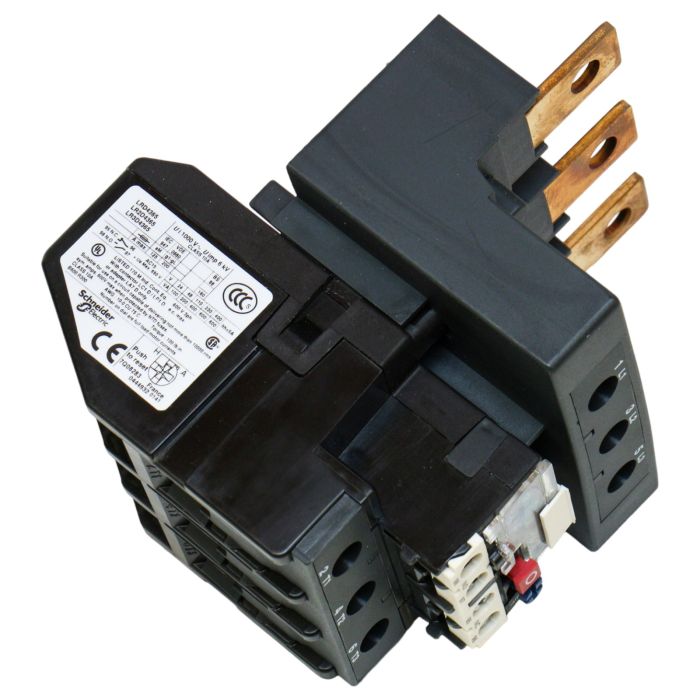

• TeSys - LRD -Thermal overload relay - 80-104A - Class 10A - Screw terminal: Description
• TeSys - LRD -Thermal overload relay - 104A/1000V - Thermal setting range 80-104A - Class 10A - For protection of 3-phase motors: 45kW@400V. Differential device with phase error (loss).
• The UPS has a thermal adjustment knob, a manual-automatic reset selector that also functions as a reset button, a test button for automatic shutdown, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling.
• The settings are protected by a transparent cover that can be locked. Connection with screw terminals, which are connected directly to the lower contact terminals of 3-pole LC1D115-D150.
• Mounting on DIN rail or screw mounting, separated from the contactor, using a terminal block LA7D3064 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

LRD4365 052333 Telemecanique is a reliable industrial component that can be used in various applications such as manufacturing, automation, and control systems. This high-quality item from Telemecanique can be purchased at PLC2Day, ensuring top performance and efficiency for your industrial needs.
