Contactor coil, TeSys Deca, LX1D6, 220V AC 50/60Hz for 80 and 95A contactor: Specifications, Main, Range, TeSys, Product or component type, Contactor coil, Device short name, LX1D6, Control circuit type, AC 50/60 Hz, [Uc] control circuit voltage, 220 V AC 50/60 Hz, Average resistance, 102 Ohm 68 °F (20 °C), Inductance of closed circuit, 6.7 H, Product compatibility, LC1D40, LC1D50, LC1D65...D95, Mechanical durability, 4 Mcycles, Maximum operating rate, 3600 cyc/h 140 °F (60 °C), Complementary, Coil technology, Without built-in suppressor module, Control circuit voltage limits, Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <131 °F (55 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <131 °F (55 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <131 °F (55 °C)), Inrush power in VA, 245 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 245 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)), Hold-in power consumption in VA, 26 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 26 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)), Heat dissipation, 6…10 W 50/60 Hz, Environment, ambient air temperature for operation, 23…140 °F (-5…60 °C).

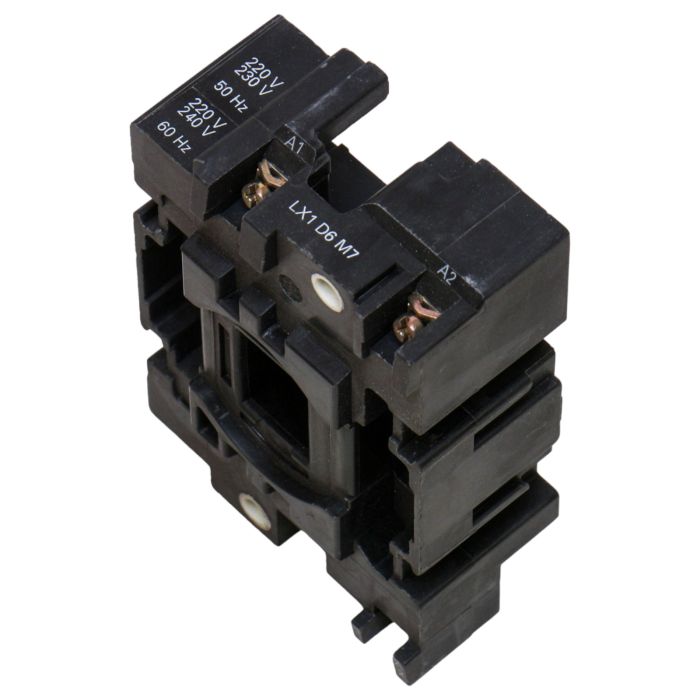

• Product or component type: Telemecanique LX1D6M7 023338 Contactor coil
• Device short name: LX1D6
• Control circuit type: AC 50/60 Hz
• [Uc] control circuit voltage: 220 V AC 50/60 Hz
• Average resistance: 102 Ohm 68 °F (20 °C)
• Inductance of closed circuit: 6.7 H
• Product compatibility: LC1D40, LC1D50, LC1D65...D95
• Mechanical durability: 4 Mcycles
• Maximum operating rate: 3600 cyc/h 140 °F (60 °C)
• Coil technology: Without built-in suppressor module
• Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <131 °F (55 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <131 °F (55 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <131 °F (55 °C))
• Inrush power in VA: 245 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 245 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
• Hold-in power consumption in VA: 26 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 26 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
• Heat dissipation: 6…10 W 50/60 Hz
• Environment, ambient air temperature for operation: 23…140 °F (-5…60 °C)

Telemecanique LX1D6M7 023338 is an essential industrial component used in various applications. It is a reliable product from Telemecanique that can be purchased at PLC2Day. This item is suitable for a wide range of industrial applications, providing efficiency and performance where it is needed most.
