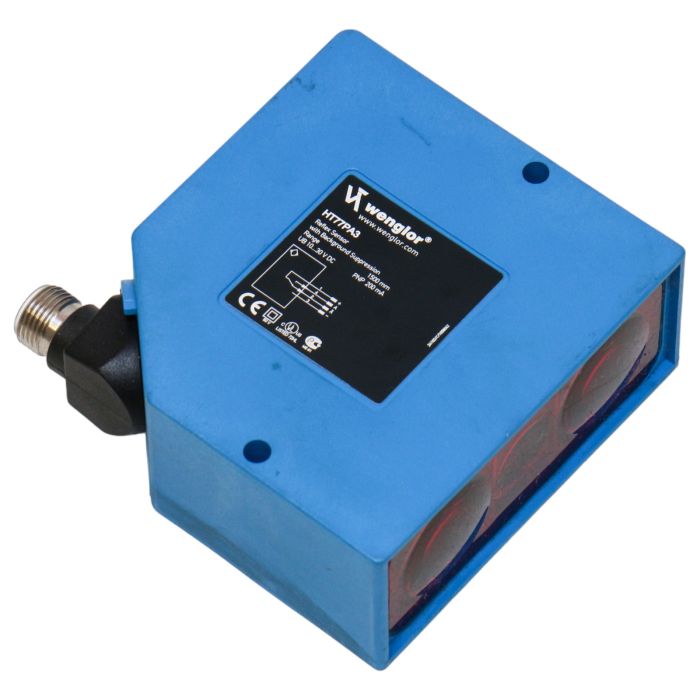

WENGLOR HT77PA3
Article number: 2402090031
1 In stock
The HT77PA3 Wenglor is a high-quality industrial sensor designed for various applications. Wenglor is known for its reliability and precision in the manufacturing of sensors. This sensor is commonly used in automation, packaging, and material handling applications to ensure accurate detection and measurement.
SKU
2402090031
€75.63
Excl. Tax:
€62.50
€72.00
Excl. Tax:
€59.50
€75.63
Excl. Tax:
€62.50
€72.00
Excl. Tax:
€59.50
Excl. Tax:
Excl. Tax:
Description / WENGLOR HT77PA3
Reflex Sensor with Background Suppression: Technical data, Downloads, Optical Data, Range 1,500 mm, Setting Range 300 ... 1,500 mm, Switching Hysteresis < 5 %, Light Source Infrared Light, Service Life (T = +25 °C) 100,000 h, Risk Group (EN 62471) 1, Max. Ambient Light 10,000 Lux, Electrical Data, Supply Voltage 10 ... 30 V DC, Current Consumption (Ub = 24 V) 40 mA, Switching Frequency 300 Hz, Response Time 1,700 µs, Off-Delay 0 ... 1 s, Temperature Drift < 5 %, Temperature Range -25 ... 60 °C, Switching Output Voltage Drop < 2.5 V, PNP Switching Output/Switching Current 200 mA, Short Circuit Protection yes, Reverse Polarity Protection yes, Overload Protection yes, Protection Class III, Mechanical Data, Setting Method Potentiometer, Housing Material Plastic, Degree of Protection IP67, Connection M12 × 1; 4-pin, Weight 126 g, Output, PNP NC, PNP NO yes, Adjustable parameters, Circuit NC, NC+N
- Reflex Sensor with Background Suppression:
- Technical data:
- Range: 1,500 mm
- Setting Range: 300 ... 1,500 mm
- Switching Hysteresis: < 5 %
- Light Source: Infrared Light
- Service Life (T = +25 °C): 100,000 h
- Risk Group (EN 62471): 1
- Max. Ambient Light: 10,000 Lux
- Electrical Data:
- Supply Voltage: 10 ... 30 V DC
- Current Consumption (Ub = 24 V): 40 mA
- Switching Frequency: 300 Hz
- Response Time: 1,700 µs
- Off-Delay: 0 ... 1 s
- Temperature Drift: < 5 %
- Temperature Range: -25 ... 60 °C
- Switching Output Voltage Drop: < 2.5 V
- PNP Switching Output/Switching Current: 200 mA
- Short Circuit Protection: yes
- Reverse Polarity Protection: yes
- Overload Protection: yes
- Protection Class: III
- Mechanical Data:
- Setting Method: Potentiometer
- Housing Material: Plastic
- Degree of Protection: IP67
- Connection: M12 Ã 1; 4-pin
- Weight: 126 g
- Output:
- PNP NC, PNP NO: yes
- Adjustable parameters:
- Circuit: NC, NC+N
HT77PA3 Wenglor is a high-quality industrial sensor designed for various industrial applications. This reliable sensor can be used in manufacturing, packaging, and automation processes to ensure smooth operations. Purchase the HT77PA3 Wenglor sensor at PLC2Day for all your industrial automation needs.
More Information
| Item Number | HT77PA3 |
|---|---|
| Brands | Wenglor |
| HS Code | Upon Request |
| EAN | Not Applicable |
| HS Description | Reflex Sensor with Background Suppression |
| Manufacturer | Wenglor |
| Product Condition | Used |
| Packing Condition | PLC2Day Packing |
